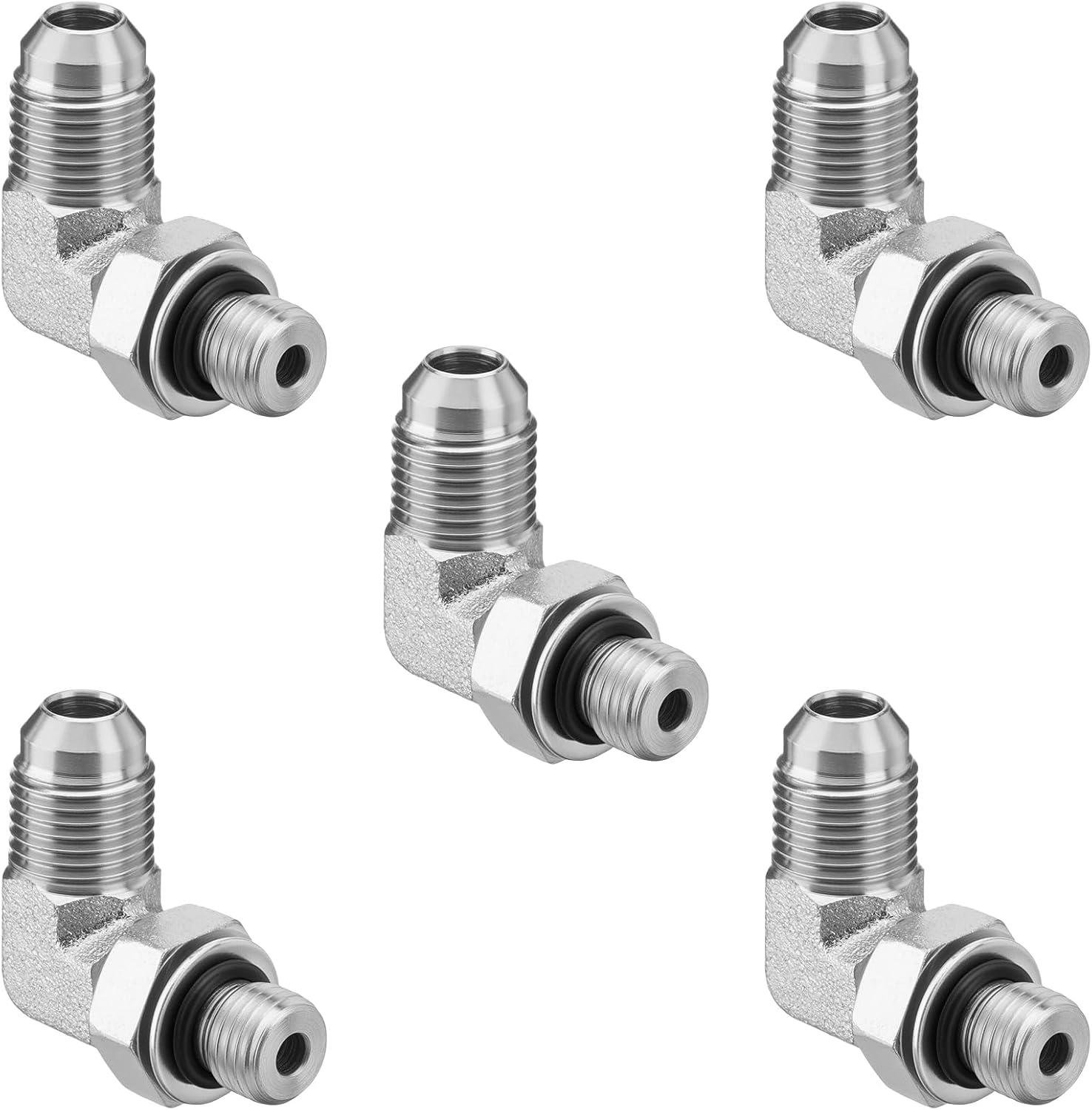

5 Pack 90 Degree Elbow Hydraulic Adapter Fittings: 3/4" JIC 37° Male x #12 SAE/ORB Male, Hydraulic End Connectors with Protection Cover - 6801-12-12
Product details
| Management number | 220350063 | Release Date | 2026/05/03 | List Price | US$13.20 | Model Number | 220350063 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 90 Degree Elbow Design: It effectively reduces pipeline bending and stress, improves the installation flexibility and convenience of hydraulic pipeline systems.
- Premium Material: 3/4" JIC Male x 3/4" ORB Male hydraulic adapters are made of premium carbon steel, which is resistant to high temperature, high pressure, and corrosion.

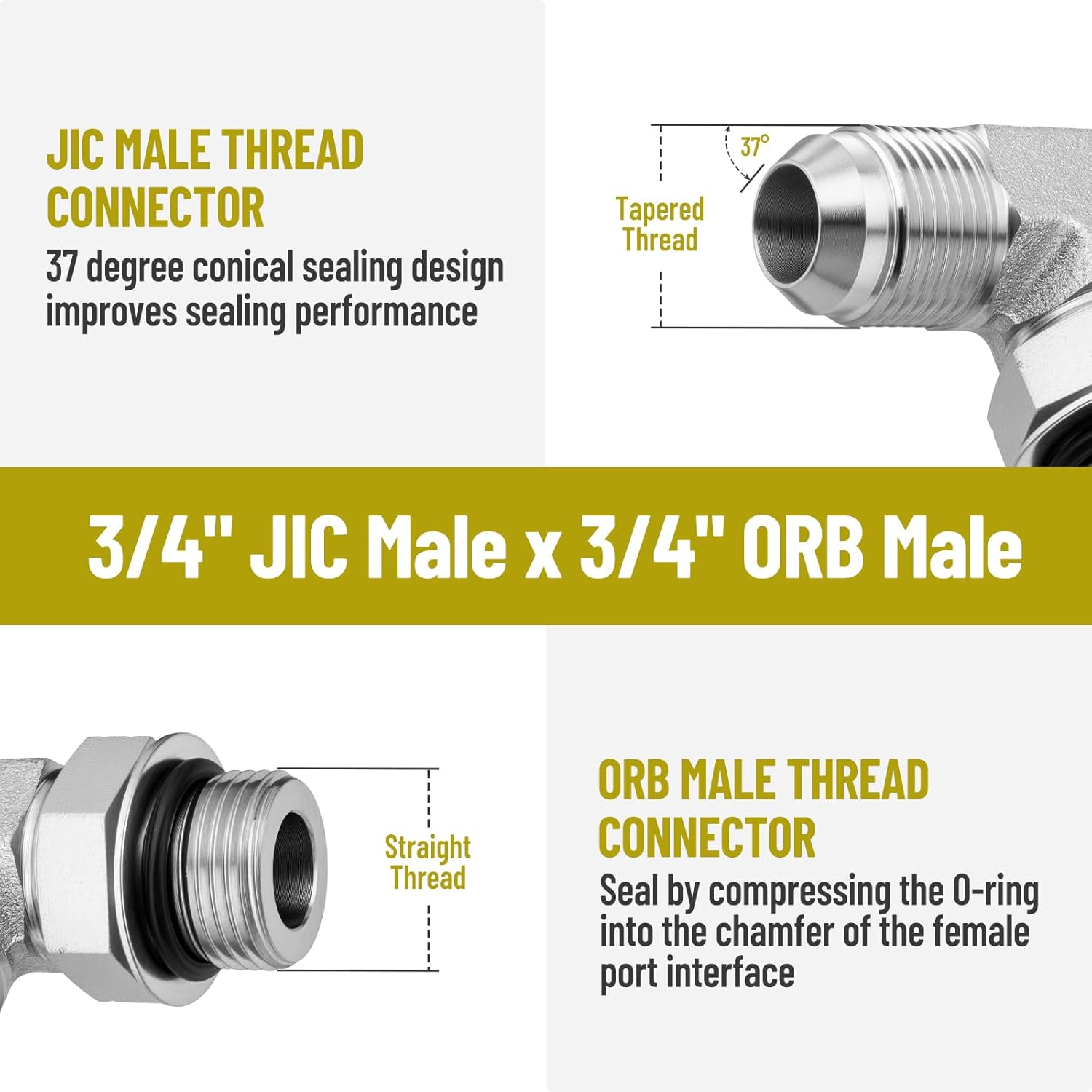

- Prevent Leakage: JIC 37° male end provides precise metal to metal sealing to prevent leakage. #12 SAE/ORB (O-Ring Boss) male end is sealed by compressing the O-ring into the chamfer of the female port interface.
- Secure Connection: Hydraulic joints securely connect hoses to hydraulic system components, control the flow of hydraulic fluid, maintain pressure and prevent leakage.
- Wide Application: Hydraulic connector fittings are very suitable for industrial fluids and various hydraulic applications, including automobiles, manufacturing, and construction.
| Size | 3/4" JIC Male x 3/4" ORB Male-5 Pack |
|---|---|
| Color | Silver |
| Set Name | 5 Pack Elbow Hydraulic Fittings |
| Brand Name | Racewill |
| Unit Count | 5.0 Count |
| Thread Size | 3/4" |
| Manufacturer | Racewill |
| Model Number | 11306252 |
| Material Type | Carbon Steel |
| Connector Type | Adapter |
| Exterior Finish | Carbon Steel |

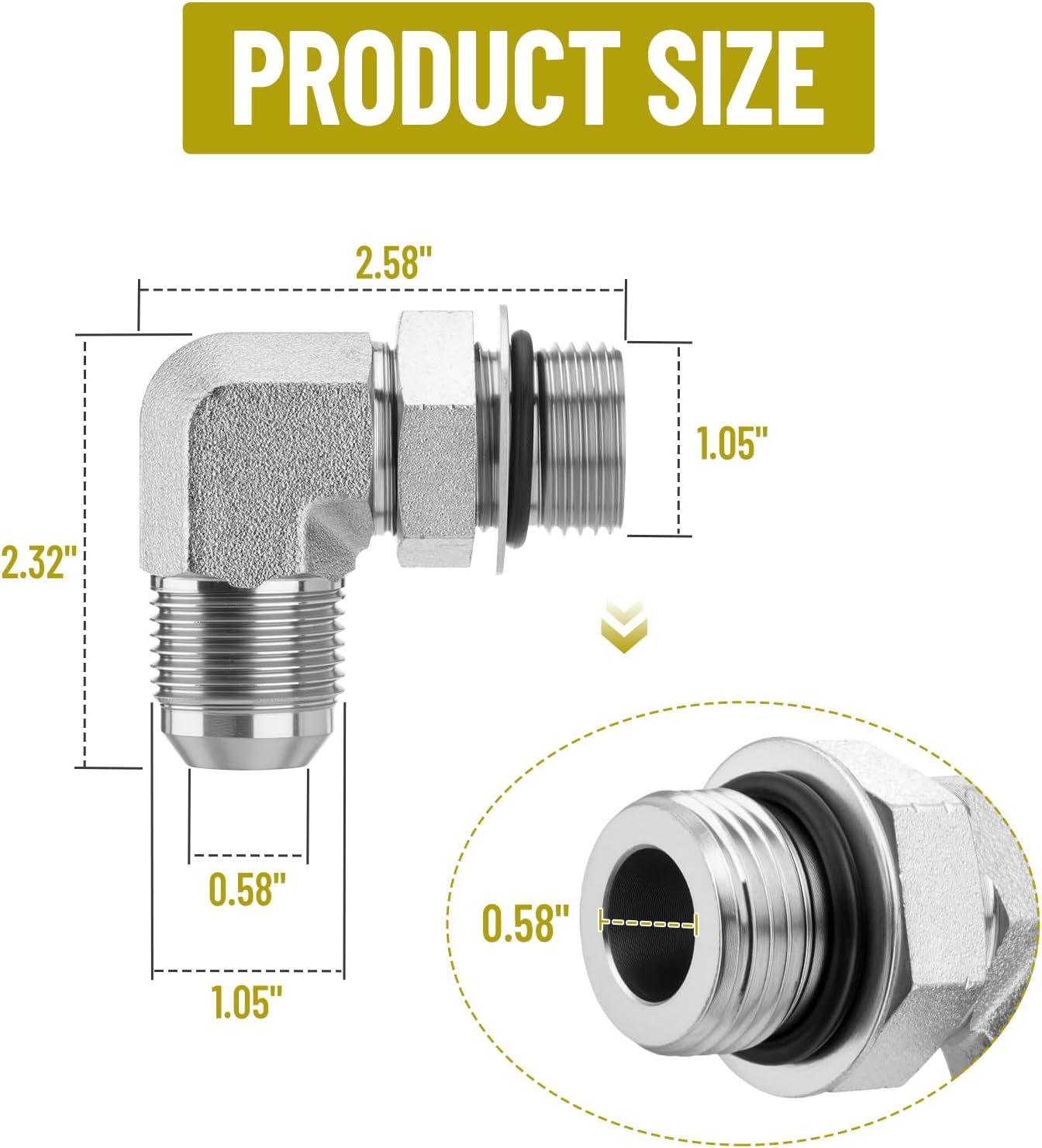

| Item Dimensions | 2.58 x 2.32 x 1.05 inches |
| Number of Pieces | 5 |
| Included Components | 5 x JIC to ORB Hydraulic Adapters |
| Manufacturer Warranty Description | 1 Years |
